| Power supply | AC200-220V±10,50/60Hz |
| Rated air pressure | 0.55Mpa |
| Drive System | AC servo motor |
| Rotation angle | 90 ° fixed |
| Maximum load | 10KG |
|
Model
|
Applicable injection molding machine (Ton) |
Up and down Master | Deputy(mm) |
Front and rear stroke Master | Deputy(mm) |
Traversal (mm) |
Battery capacity (Kva) |
Maximum consumer electricity (Kw) |
Weight (Kg) |
Air consumption (NL/cm³) |
| DDB-800S3 | 160-200T | 800|/ | 300|/ | 1350 | 0.8 | 0.4 | 150 | 0.5 |
| DDB-1000S3 | 250-280T | 1000|/ | 300|/ | 1520 | 0.8 | 0.4 | 160 | 0.5 |
| DDB-1200S3 | 320-470T | 1200|/ | 300|/ | 1900 | 0.8 | 0.4 | 180 | 0.5 |

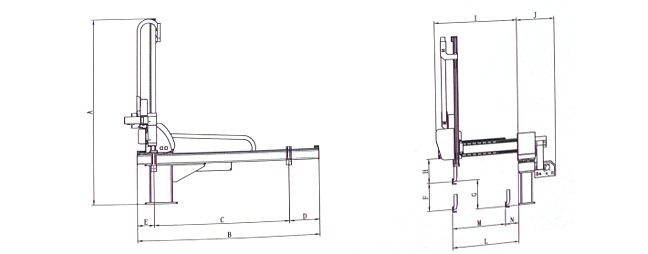

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| DDB-800S3 | 1780 | 1844 | 1350 | 278 | 205 | 800 | 360 | 266 | 945 | 502 | / | 805 | 300 | 153 |
| DDB-1000S3 | 1980 | 2004 | 1520 | 278 | 205 | 1000 | 360 | 266 | 945 | 502 | / | 805 | 300 | 153 |
| DDB-1200S3 | 2180 | 2404 | 1900 | 278 | 205 | 1200 | 360 | 266 | 1045 | 502 | / | 905 | 300 | 153 |
