| Power supply | AC200-220V±10%，50/60Hz |
| Rated air pressure | 0.55Mpa |
| Drive System | AC servo motor+cylinder |
| Rotation angle | 90 ° fixed |
| Maximum load | 3Kg |
|
Model
|
Applicable injection molding machine (Ton) |
Up and down Master | Deputy(mm) |
Front and rear stroke Master | Deputy(mm) |
Traversal (mm) |
Battery capacity (Kva) |
Maximum consumer electricity (Kw) |
Weight (Kg) |
Air consumption (NL/cm³) |
| DDB-1000R | 280-380 | 1000|/ | 200|/ | 1350 | 0.8 | 0.4 | 170 | 0.5 |
| DDB-1000PR | 280-380 | 1000|850 | 200|150 | 1350 | 0.8 | 0.4 | 170 | 0.5 |

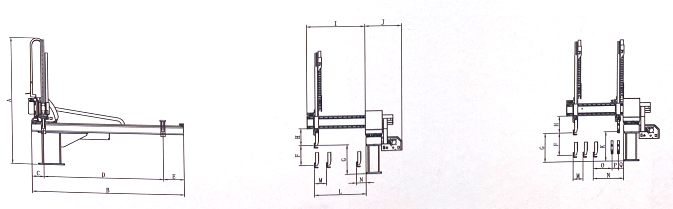

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| DDB-850R | 1460 | 2004 | 210 | 1520 | 270 | 850 | 350 | 275 | 750 | 462 | 345 | 610 | 200 | 105 | / | / | / |
| DDB-850PR | 1460 | 2004 | 210 | 1520 | 270 | 850 | 350 | 275 | 750 | 462 | 345 | 610 | 200 | 440 | 127 | 150 | 160 |
