| Power supply | AC200-220V±10%，50/60Hz |
| Rated air pressure | 0.55Mpa |
| Drive System | AC servo motor+pneumatic |
| Rotation angle | 90 ° fixed |
| Maximum load | 3Kg |
|
Model
|
Applicable injection molding machine (Ton) |
Up and down Master | Deputy(mm) |
Front and rear stroke Master | Deputy(mm) |
Traversal (mm) |
Battery capacity (Kva) |
Maximum consumer electricity (Kw) |
Weight (Kg) |
Air consumption (NL/cm³) |
| DDB-750R | 120-160 | 750|/ | 170|/ | 1350 | 0.8 | 0.4 | 150 | 0.5 |
| DDB-750PR | 120-160 | 750|750 | 170|150 | 1350 | 0.8 | 0.4 | 150 | 0.5 |

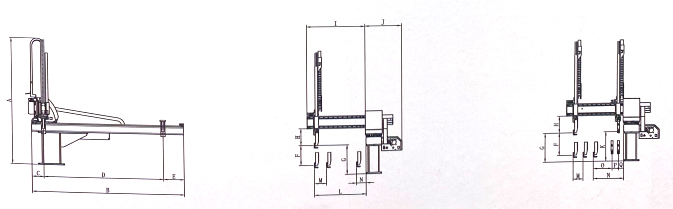

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | ||
| DDB-750R | 1520 | 1844 | 223 | 1350 | 345 | 750 | 360 | 215 | 749 | 462 | / | 700 | 170 | 60 | / | / | / |
| DDB-750PR | 1520 | 1844 | 223 | 1350 | 345 | 750 | 360 | 215 | 749 | 642 | 357 | 700 | 170 | 360 | 150 | 150 | 60 |
